Tyson Heated Beds for 3D printers

Requires a Tyson Hat for Bambu Lab Printers!!!

WARNING: This heated bed contains powerful permanent magnets. Handle with care.

The Tyson Heated Bed is a high performance heated bed upgrade designed for demanding engineering and high-temperature 3D printer filaments. Built from precision cast aluminum, it features an in house developed heating element combined with a three layer ceramic insulation system and a rigid backing plate for exceptional thermal performance.

Depending on the model, each heated bed contains 36 to 128 high temperature permanent magnets. These magnets are embedded directly into the aluminum using Tyson's proprietary liquid aluminum potting process, permanently securing them in place. The magnets are rated for temperatures up to 450°C and are identical to those used in the standalone Tyson Hat system.

For heated beds with vacuum instead of magnets, please contact sales@tyson.build for a custom quotation.

Tyson heated beds are rated for temperatures up to 400°C due to cast aluminum, while the maximum supported operating temperatures depend on the printer platform.

When paired with a Tyson Hat, the following maximum bed temperatures are supported on Bambu Lab printers:

• X2D: Up to 240°C
• P2S: Up to 220°C

This effectively doubles the maximum bed temperature available through the stock printer interface. A Tyson Hat is required to operate this heated bed on Bambu Lab printers.

For other printer brands, the maximum usable temperature is ultimately limited by the capabilities of the printer and the aluminum heated bed itself.

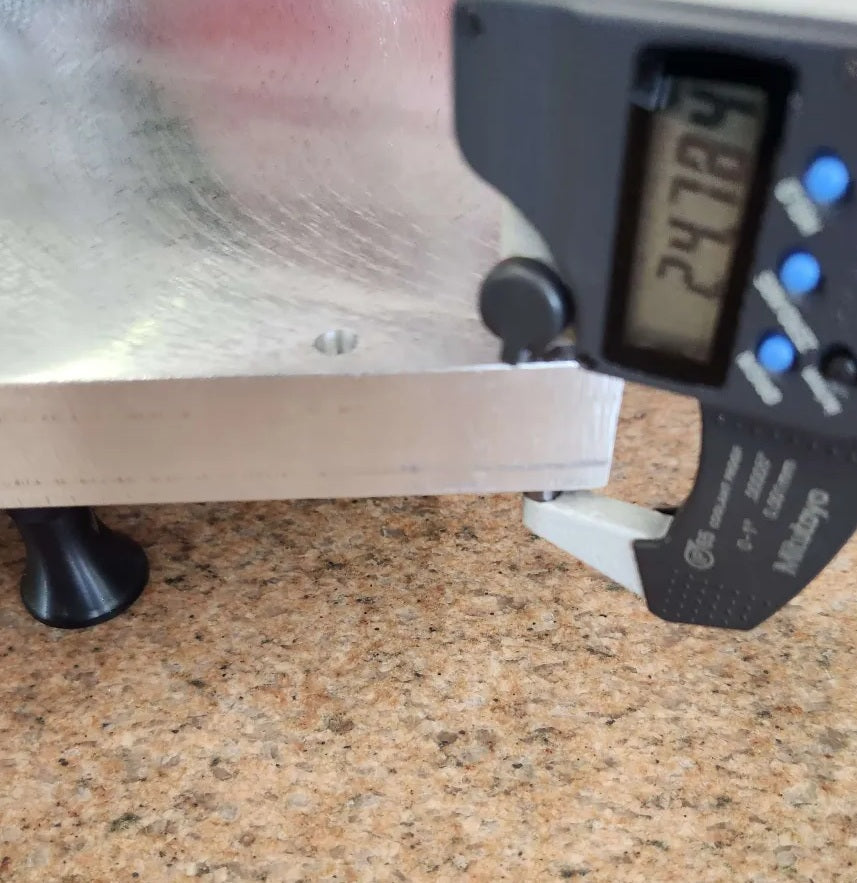

Bed Thickness

•

• Bambu Lab P2S/X2D: 18 mm
• Voron300 & 350: 25 mm
• Vision Miner 22 Idex: 32 mm

Key Features

• Precision cast aluminum heated bed for excellent flatness and thermal stability

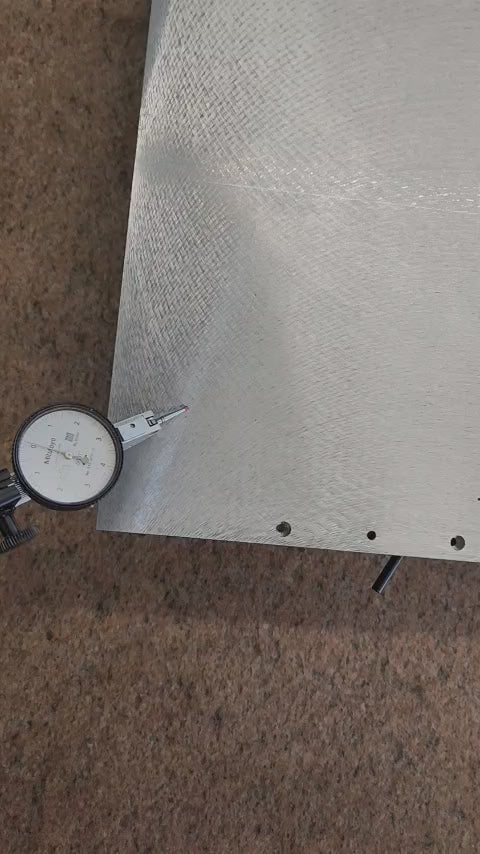

• Flatness within 35 micron. Every heated bed is individually inspected on a Grade A granite surface plate before shipment.
• Maintains 35 micron flatness up to 250°C on 25-32mm beds
• Maintains 35 micron flatness up to 180°C on 18mm beds

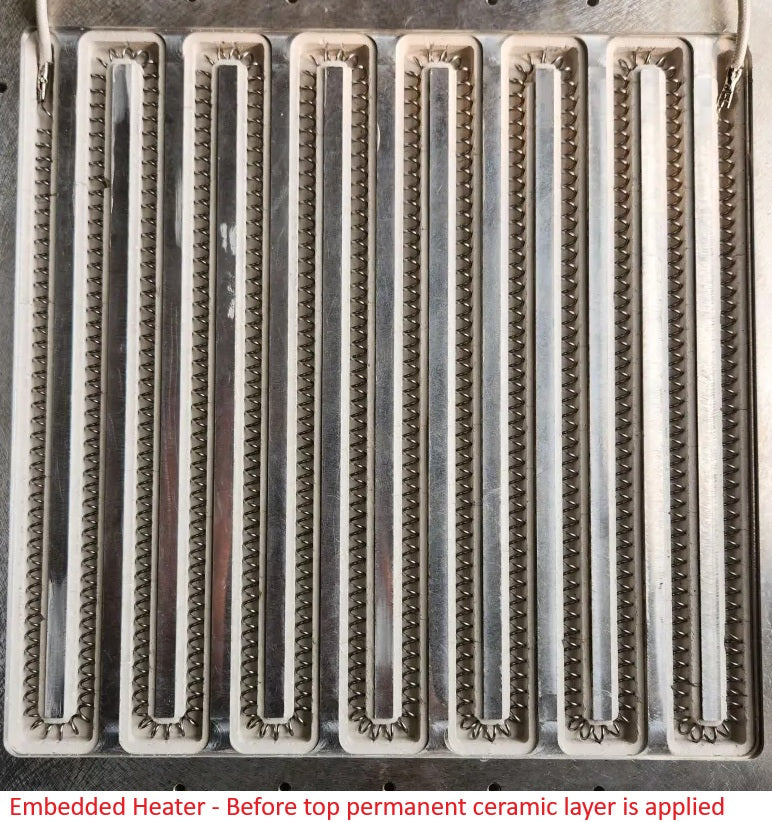

• In house developed high performance heating element

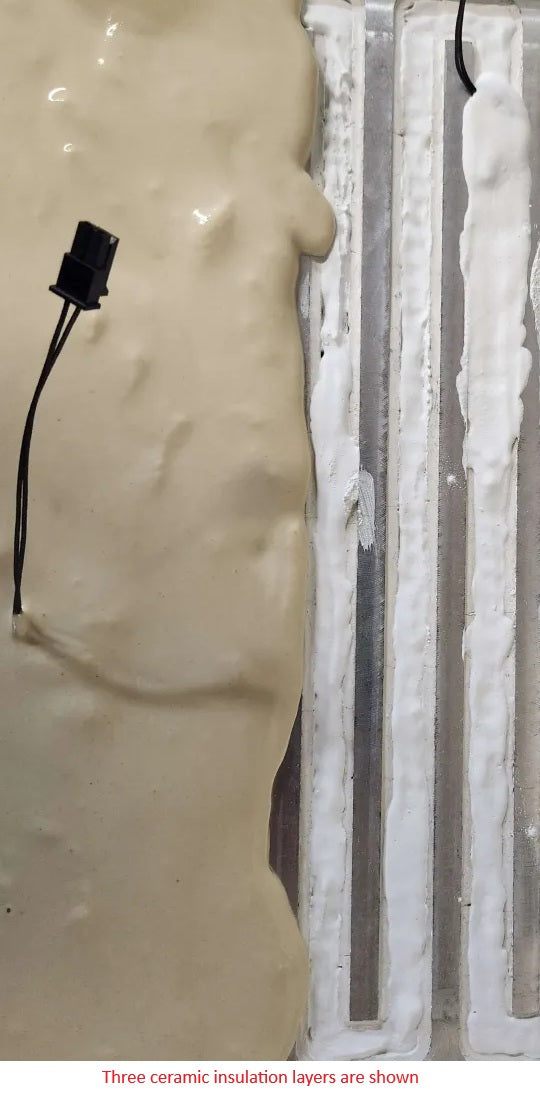

• Three-layer ceramic insulation system rated to 1,200°C
• Rigid backing plate for improved structural support and safety
• Designed for demanding engineering materials and high-temperature printing
• Heater assembly rated for temperatures up to 400°C
• 2 x M3/M4 threaded holes for thermal fuse.
• Power: 2.2KW - 3.8KW @ 240 V (model dependent)
• Power: 550W – 950 W @ 120 V (model dependent). On larger printers, such as the Vision Miner 22 IDEX and Vorons, 120 V may be insufficient to achieve bed temperatures above 200°C. Additional insulation or 240 V operation is required.
• Permanently attached 3 x PT100

Important Disclaimer

By purchasing and using this product, you acknowledge and agree that:

• Operating a Bambu Lab printer above 120°C bed temperature is done entirely at your own risk.
• Operating a Vision Miner 22 Idex printer above 200°C bed temperature is done entirely at your own risk.
• Operating any printer beyond the manufacturer's specified temperature limits may void the original factory warranty.
• It is the user's responsibility to verify that their printer and all installed components are suitable for operation at elevated temperatures before use.

Tyson is not responsible for damage resulting from operation outside the manufacturer's specified limits or from improper installation or use of this product.
